Templates and model types in the QualiWare platform.

HTML Content Tab

A HTMLContentTab is used to set up content in tab format. Content tabs are used in the HTMLTemplateDefinition, to create dedicated tabs with different types of content (in the Center tab in the Diagram Workspace – Classic Layout).

Title: This will be shown as the title of the tab. If nothing is specified, the name of the HTMLContentTab object will be shown on the tab.

Empty content text: If there is no content to show inside the tab, then this text will be shown.

Content field: This defines the content of the tab. It is possible to either specify a list of attributes to show or to link to other objects that defines the content.

Content field

There are a few different ways to specify the content of the tab, right click in the box to get the available options:

  • Add Parameter : This will guide you through which parameters are possible to insert. First choose a template, and then it is possible to choose an attribute of that template.
  • Add HTML content: It is possible to insert a variarity of HTML content including:
  • Add Analytics content: It is possible to insert any of the following:
  • Add Customer content: This will insert a line you can configure.

HTML Content Box

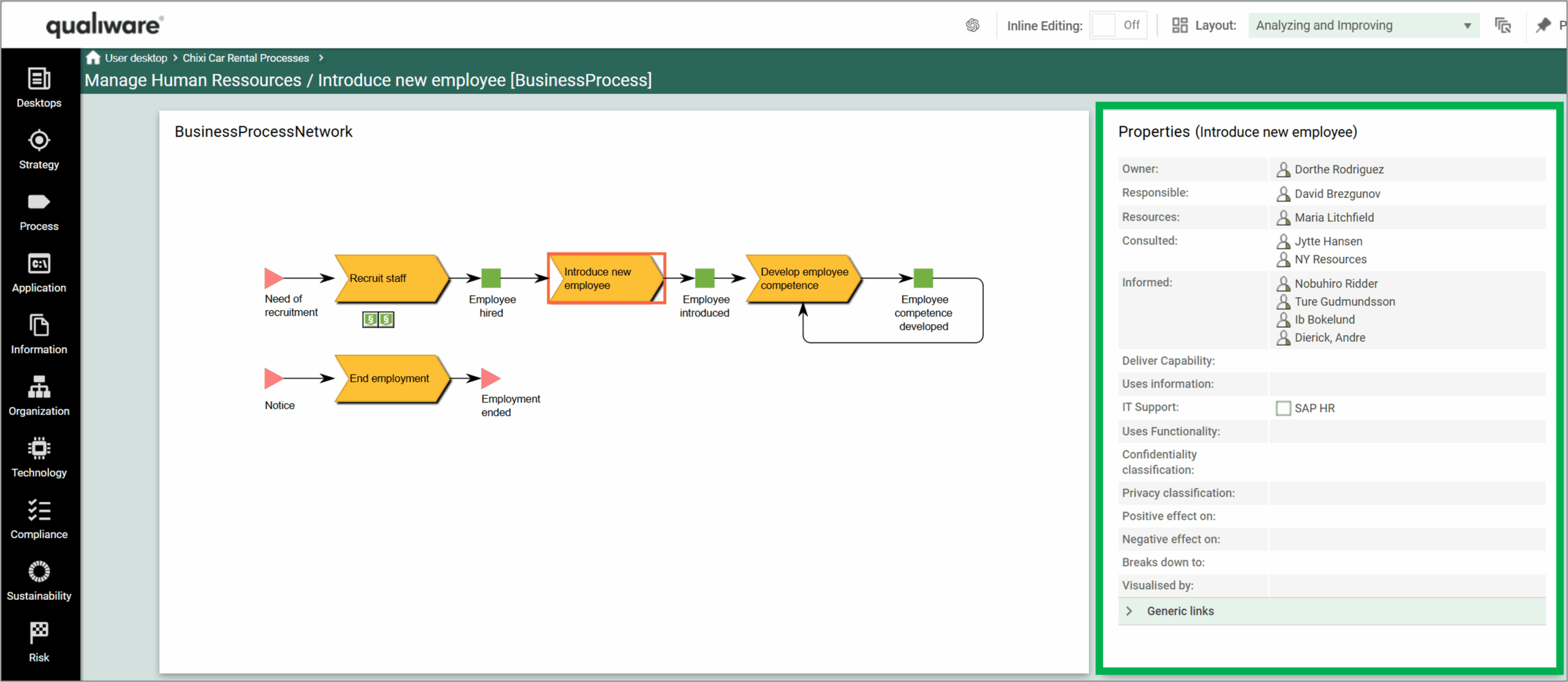

A HTMLContentBox is a contained box that holds some information. It can be placed in a side panel or inside a tab.

Collapsible: Defines if the box should be collapsible (Value: checked / unchecked)

Collapsed: Defines if the initial state of the box is collapsed.

Show counter: Defines if the box should display a counter to show how many links it contains. (Value: checked / unchecked)

Hide if empty: Defines if the box should be hidden if there is not content (Value: checked / unchecked)

Empty content text: If there is no content to show inside the box, then this text will be shown.

Title:  This will be shown on the title bar. If nothing is specified, the name of the HTMLContentBox object will be shown on the title bar.

Format: This defines how the information in the box should be shown. Values are Generic, List, Table.

Use Web Query: This defines how the information in the box should be shown. Values are Generic, List, Table.

Use a HTMLWebQuery to define a list of objects to show. This can e.g. be a list of all ExternalDocuments that are related to the current object in a specific way.

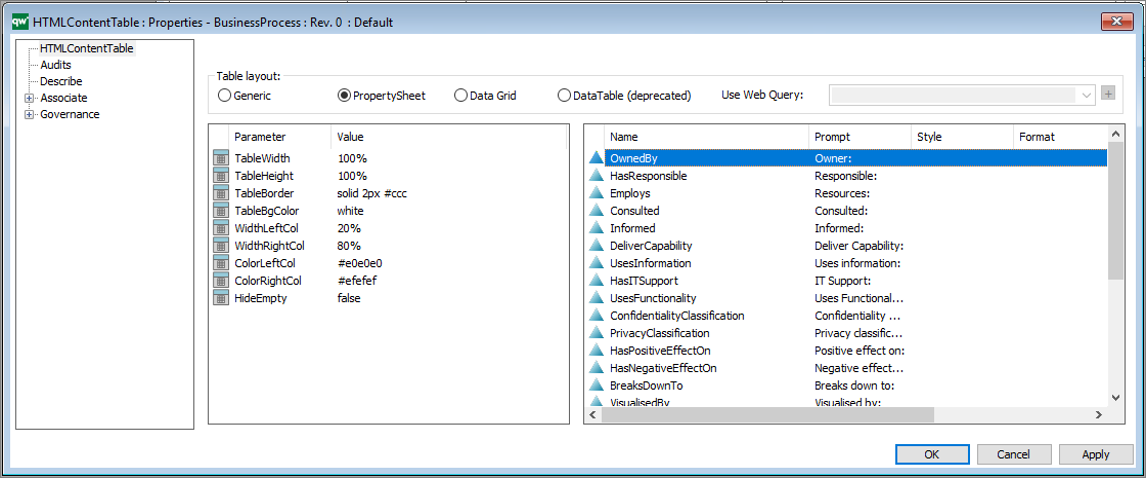

Content field:  This defines the content of the box unless a web query is selected. It is possible to specify a list of attributes to show.

  • Name: The content to be displayed.
  • Prompt: A prompt that helps the user understand what the content is.
  • Style:
  • Format: The format of the content of the content box.
    • Values are: CheckList: displays content from the diagram as a checklist. It is possible to select/deselect individual items, and select/deselect all items.
    • Chart
    • Spreadsheet
    • Fieldset

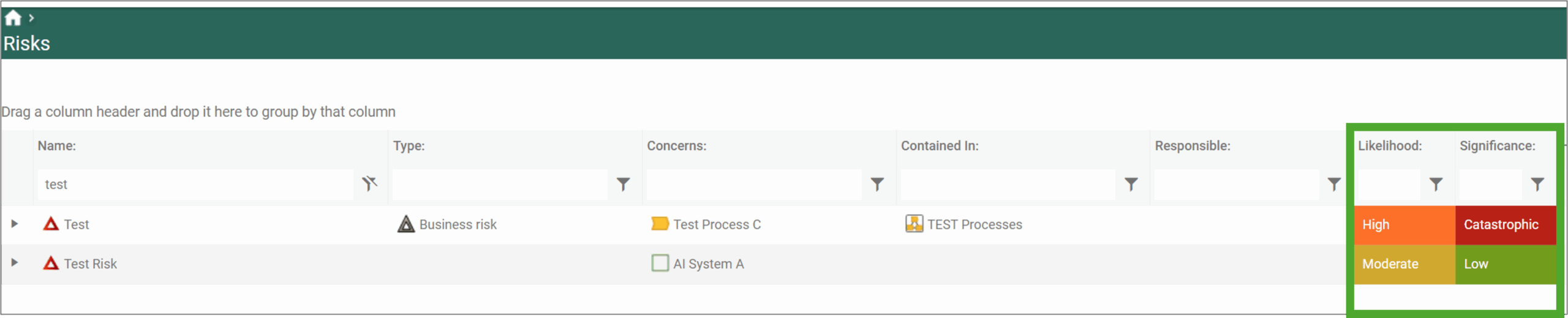

    • Table: displays content in a table format.
    • List: displays content in list format.
    • Gauge
    • Embed
  • Function:
  • Role: You can add a repository role to configure who can see the information.

A HTMLContentBox in inserted in a HTMLTemplateDefintion, in the left or right sidepanel.

History State

Description of this template will be available soon.

Help Item

Description of this template will be available soon.

Health Check

Description of this template will be available soon.

Guide

A “guide” refers to a set of instructions or procedures that are used to carry out a specific business process.

For example a restaurant using a recipe to prepare a dish (the business object) as part of their food preparation process (the business process). The recipe serves as a guide for the chefs to follow, ensuring that the dish is prepared consistently and to the desired quality every time it is ordered by a customer.

The “guide” connection links a business object to instructions or procedures that guide the execution of a business process, the “resource” connection links a business object to the specific resources needed to carry out that process.

Grouping : ArchiMate

The grouping element aggregates or composes concepts that belong together based on some common characteristic.

The grouping element is used to aggregate or compose an arbitrary group of concepts, which can be elements and/or relationships of the same or of different types. An aggregation or composition relationship is used to link the grouping element to the grouped concepts. Grouping elements can also have other relationships to and from them.

Group

In a business process diagram, the symbol “Group” is used to represent a grouping of related activities. It is a visual element that can be used to organize a process into smaller components or subprocesses, each with its own set of activities and decisions.

The Group symbol is typically used to improve the readability of a complex process diagram by breaking it down into smaller, more manageable pieces. It can also be used to visually differentiate different parts of the process or to indicate areas of responsibility.
