Technology Usage Viewpoint : Archimate

Concerns: Dependencies, performance, scalability
Purpose: Designing
Scope: Multiple layer/Multiple aspect

The technology usage viewpoint shows how applications are supported by the software and hardware technology: the technology services are delivered by the devices; system software and networks are provided to the applications. This viewpoint plays an important role in the analysis of performance and scalability, since it relates the physical infrastructure to the logical world of applications. It is very useful in determining the performance and quality requirements on the infrastructure based on the demands of the various applications that use it.

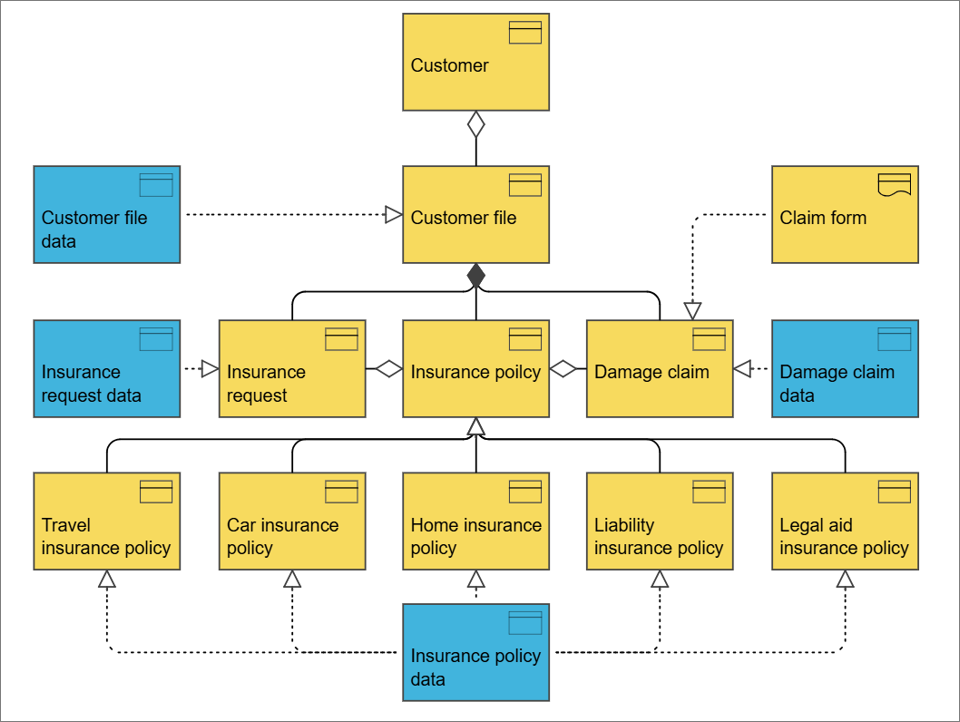

Information Structure Viewpoint : Archimate

Concerns: Structure and dependencies of the used data and information, consistency and completeness
Purpose: Designing
Scope: Multiple layer/Single aspect

The information structure viewpoint is comparable to the traditional information models created in the development of almost any information system. It shows the structure of the information used in the enterprise or in a specific business process or application, in terms of data types or (object-oriented) class structures. Furthermore, it may show how the information at the business level is represented at the application level in the form of the data structures used there, and how these are then mapped onto the underlying technology infrastructure; e.g., by means of a database schema.

Service Realization Viewpoint : Archimate

Concerns: Added-value of business processes, consistency and completeness, responsibilities
Purpose: Designing, deciding
Scope: Multiple layer/Multiple aspect

The service realization viewpoint is used to show how one or more business services are realized by the underlying processes (and sometimes by application components). Thus, it forms the bridge between the business products viewpoint and the business process view. It provides a “view from the outside” on one or more business processes.

Physical Viewpoint : Archimate

Concerns: Relationships and dependencies of the physical environment and how this relates to IT infrastructure
Purpose: Designing
Scope: Multiple layer/Multiple aspect

The physical viewpoint contains equipment (one or more physical machines, tools, or instruments) that can create, use, store, move, or transform materials, how the equipment is connected via the distribution network, and what other active elements are assigned to the equipment.

Layered Viewpoint : Archimate

Concerns: Consistency, reduction of complexity, impact of change, flexibility
Purpose: Designing, deciding, informing
Scope: Multiple layer/Multiple aspect

The layered viewpoint pictures several layers and aspects of an Enterprise Architecture in one diagram. There are two categories of layers, namely dedicated layers and service layers. The layers are the result of the use of the “grouping” relationship for a natural partitioning of the entire set of objects and relationships that belong to a model. The technology, application, process, and actor/role layers belong to the first category. The structural principle behind a fully layered viewpoint is that each dedicated layer exposes, by means of the “realization” relationship, a layer of services, which are further on “serving” the next dedicated layer. Thus, we can easily separate the internal structure and organization of a dedicated layer from its externally observable behavior expressed as the service layer that the dedicated layer realizes. The order, number, or nature of these layers are not fixed, but in general a (more or less) complete and natural layering of an ArchiMate model should contain the succession of layers depicted in the example given below. However, this example is by no means intended to be prescriptive. The main goal of the layered viewpoint is to provide an overview in one diagram. Furthermore, this viewpoint can be used as support for impact of change analysis and performance analysis or for extending the service portfolio.

All core elements and all relationships are permitted in this viewpoint.

Application Architecture Diagram

Purpose: The purpose of an Application Architecture Diagram is to show the structure of an Information System and its relations to other Information Systems.

Core concerns: The Application Architecture Diagram is used to document the application/systems layer. It can show information flows and system dependencies between Information Systems as well as depict system components and system areas.

The above picture shows an example of an Application Architecture Diagram depicting an overview of the Information Systems related to BEO. The information systems are connected by arrows that symbolize system dependencies.

Other functionalities: Application Architecture Diagrams can be analyzed in QualiWare via the toolbar for Application Portfolio Management. The Application Portfolio Management tools offers analysis for redundant functionalities, performance matrix generation, system heat map generation, asset lifecycle view (se below picture), lifecycle dependencies, and capabilities delivered by multiple information systems.

The above picture shows the Asset Lifecycle of the Information System ‘BEO’ and the Information Systems related to it is shown. The information depicted is pulled from the Information Systems’ metadata.

Relation to other templates: The elements depicted in the Application Architecture Diagram can be described in further detail in another Application Architecture Diagram, or in related diagrams such as a Data Flow Diagram.

The above picture shows an example of a more detailed view of an information system. In this Application Architecture Diagram the System Components are visible.

For documentation of a physical or hardware layer, the Infrastructure Diagram template can be used.

Properties and metadata: The Application Architecture Diagram can for example retain the following information:

A description of the diagram
Link to the owner of the application architecture
Link to the one responsible for the application architecture
Associated documents, diagrams and other objects
Inherent Risk detailing risk considerations
Governance information detailing information about the published diagram and who has been involved in the approval of the diagram

The above picture shows the properties dialogue window for the Application Architecture Diagram where you can view and edit the diagram’s properties.

Account Context Diagram

Purpose: The purpose of the Account Context Diagram is to enable financial risk management by illustrating which processes create transactions on a given account, and which risks are related to this transaction.

Core concerns: The Account Context Diagram enables you to model Accounts, Business Processes and link them with influences.

Below, you can see an example of an Account Context Diagram for the account ‘Other Payables’:

The risks are linked to the influencers and shown on the diagram. For example, in the above diagram, both risks are: ‘Goods received not invoiced, not recognized as a liability at period end’.

It is possible to link multiple risks to each influence. In the following diagram, you can see a similar Account Context Diagram, where several risks are connected to a single influence:

Relation to other templates: The Account Context diagram is for financial risk management. It is related to the Control Coverage Map and the Heat Map templates, which can be generated based on the information in the Account Context Diagram.

Properties and metadata: The Account Context Diagram can for example retain the following information:

A description of the diagram
Link to the owner of the diagram
Link to the one responsible for the diagram
Link to the Account shown in the diagram
Audits (auto generated information regarding its current state and access rights)
Associated documents, diagrams and other objects
Inherent Risk detailing risk considerations
Governance information detailing information about the published diagram and who has been involved in the approval of the diagram

The above picture shows the properties dialogue window for the Account Context Diagram where you can view and edit the diagram’s properties in QualiWare Lifecycle Manager.

Activity Diagram

Purpose: The purpose of the Activity Diagram is to show the overall flow of control through workflows for computational and organizational processes using the UML standard.

Core concerns: The Activity Diagram enables you to document stepwise activities and actions with support for choice, iteration and concurrency. The template allows you to connect the following objects using either Control Flows, Object Flows or Exception Handlers:

Below, you can see two different examples of an Activity Diagram. The first illustrates a structure for an ideation process, the second shows the process for Booking an order – divided into two different Activity Partitions:

Relation to other templates: The Activity Diagram can be used instead of a Workflow Diagram or a Business Process Diagram, though the different languages have their own pros and cons. The Activity Diagram is part of the UML templates QualiWare supports along with the Communication Diagram, Deployment Diagram, Class Diagram, Composite Structure Diagram, State Diagram, Package Diagram, Component Diagram, Sequence Diagram, Use case diagram and Timing Diagram.

Properties and metadata: The Activity Diagram can for example retain the following information:

A description of the diagram
Link to the owner of the diagram
Link to the one responsible for the diagram
Audits (auto generated information regarding its current state and access rights)
Extensions: Stereotypes, constraints and tagged values
Associated documents, diagrams and other objects
Inherent Risk detailing risk considerations
Governance information detailing information about the published diagram and who has been involved in the approval of the diagram

The above picture shows the properties dialogue window for the Activity Diagram where you can view and edit the diagram’s properties in QualiWare Lifecycle Manager.

For more information: about the UML and Activity Diagram, please visit the Object Management Group’s Website, where you can find the complete specification.
